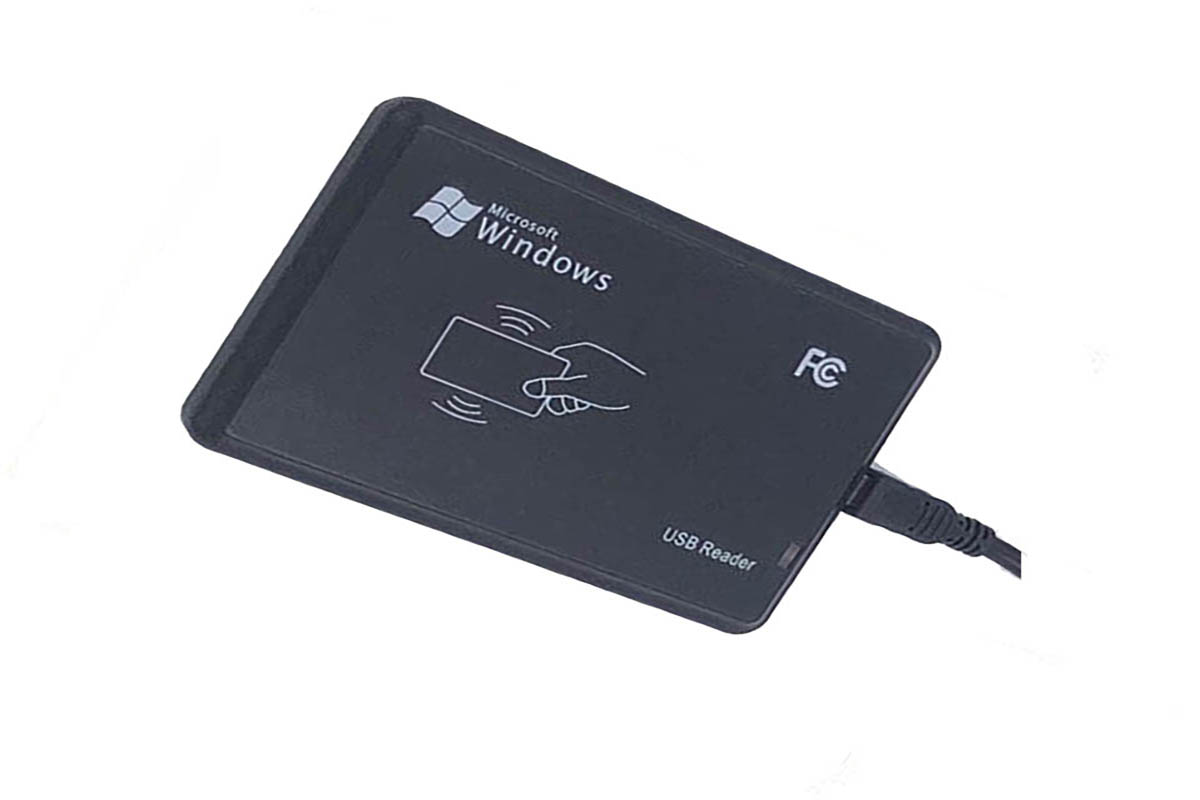

Desktop smart card reader STAR-200-V10

Item

Description

Product part number

STAR-200-V10

Product name

Desktop card reader

Card type

Mifare Ultraligth

Mifare Classic 1K(S50)

Mifare Classic 4K(S70)

Type A  CPU

Type B  CPU

Communication frequency

106 Kbit/s

working frequency

13.56 MHz  ± 7kHz    RF output power  30dBm（MAX）

read distance

 20 - 50 mm  (depends on the card)

RFID technology

ISO/IEC 14443 Type A/B

Interface

USB 2.0 FULL SPEED

Communication speed

Baud rate 12M BPS   USB windows free HID device   about  700KByte /s

Firmware update

On line firmware update

OS

Windows /linux /android

Working Voltage

USB  DC 5.0V (+4.75V~+5.25V)

Working Current

≤400mA / DC 5V  peak current    ≤150mA / DC 5V   standby current

Working temperature

0 ~+50℃   <95%RH (+25℃) non-condense

Storage temperature

‘-10~+85℃  <95%RH (+25℃) non-condense

cable length

1000mm

CMB

10.5*70*14.5

Net weight

about 80g

Warranty

one year
