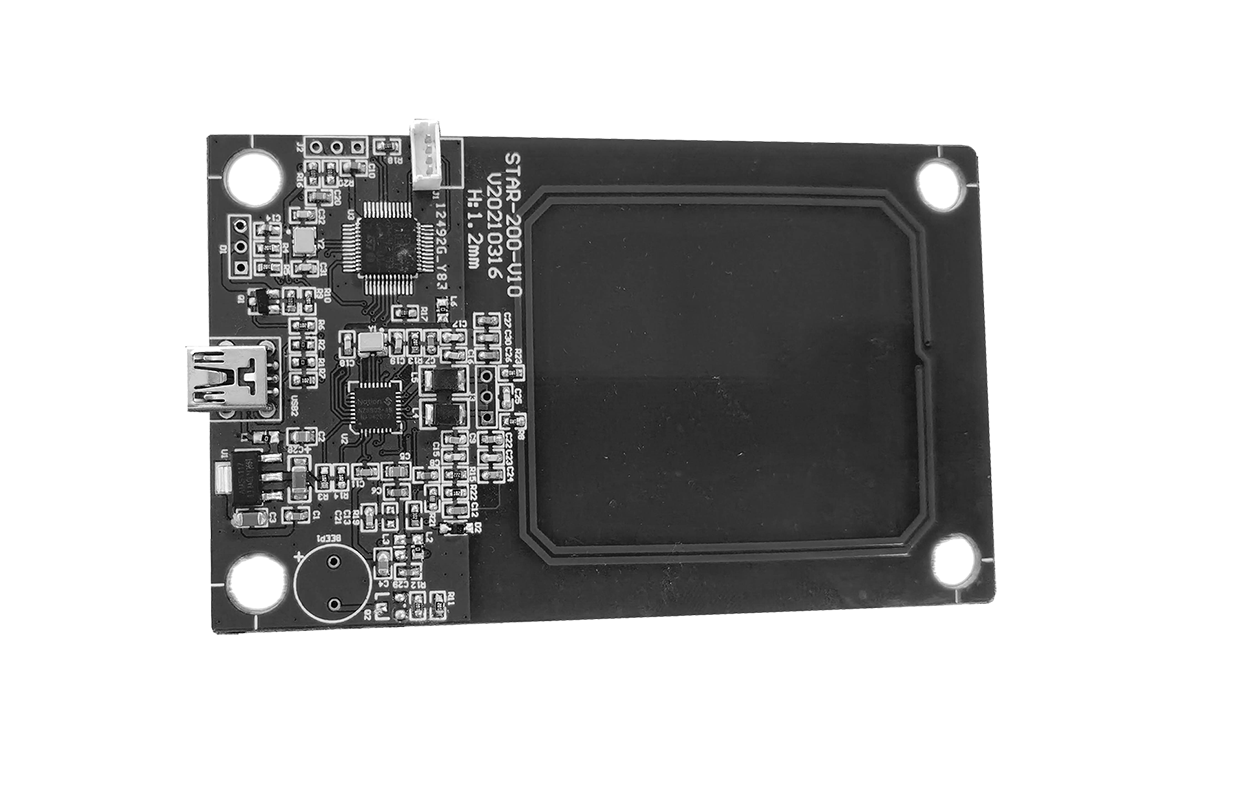

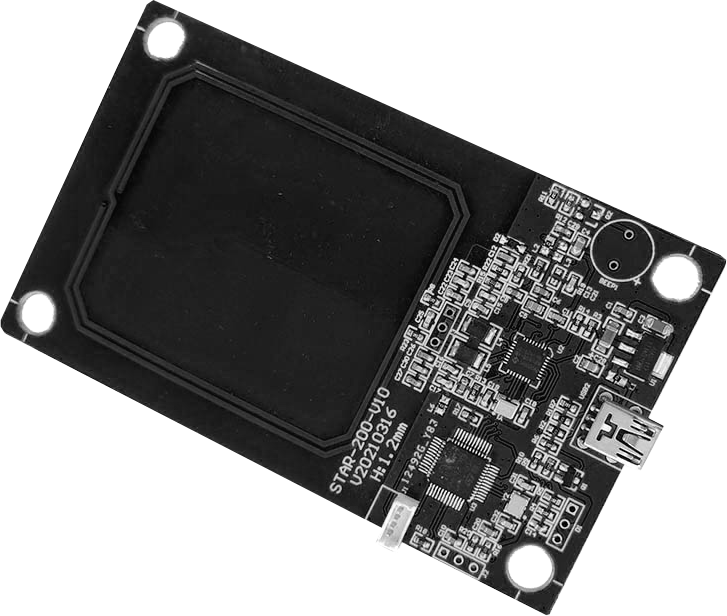

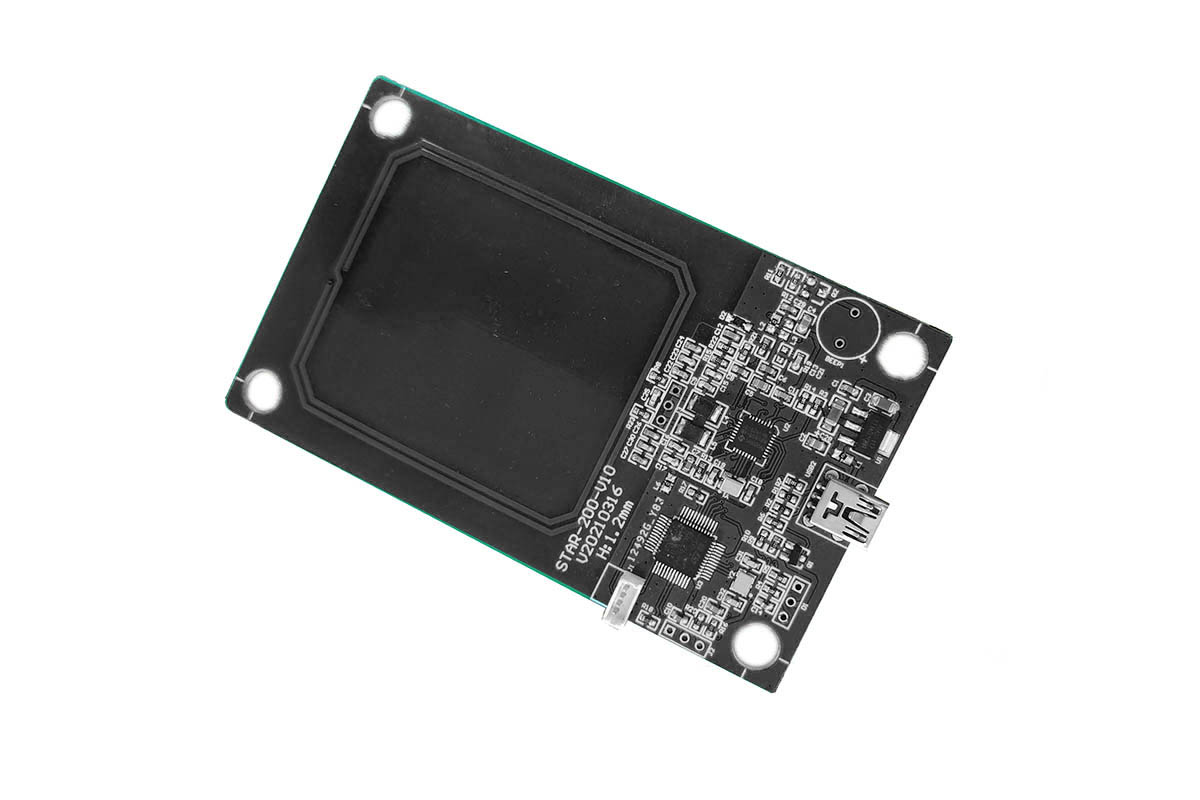

RFID card reader Star-200-V12

Product features

l RS-232/485 default baud rate 115200;

l Power input DC 4.5-5.5

l Working current: ≤60mA（working）

l Card type: Mifare 1K/4K、Ultra Light、DESFIRE 、PLUS 卡；ISO14443-4 TYPE A；

l Card detect: Support automatically card tracking and recognize card type

l Read range: ≤40mm (Actual distance depend on card type)

l Size: 90*50mm

l Weight: About 100g

l Operation environment: 0℃ ~ 50℃, 0 ~ 95 % RH ( no condensation )；humility 5 to

95% RH (no condensation) Ta <= 60℃;

l Storage environment:: -20℃ ~ 75℃, 0 ~ 95 % RH (no condensation )；humility 5 to 95% RH (no condensation ) Ta <= 70℃;
